Az U-joint csapágy fontos mechanikus átviteli alkatrész. Elsősorban kereszttengelyből, csapágy ülésből, tűhengerből és más alkatrészekből áll. A kompakt szerkezet, a magas átviteli hatékonyság és az erős szög kompenzációs képesség jellemzői. Az univerzális közös csapágyakat széles körben használják autókban, mérnöki gépekben, mezőgazdasági gépekben és más területeken. Ezek kulcsfontosságú elemek a tengelyek rugalmas sebességváltó és szögkonverziójának eléréséhez. Kiváló minőségű anyagai és finom kivitelezése biztosítja a csapágyak stabilitását és tartósságát, és különféle összetett munkakörülmények mellett képes kielégíteni az átviteli igényeket.

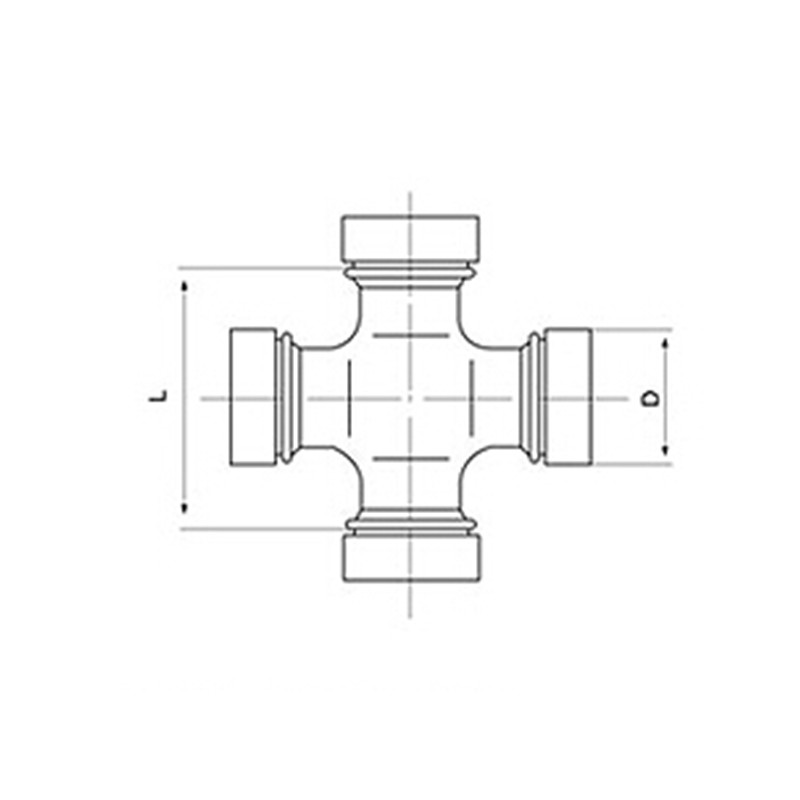

Termékparaméterek
| Részben | D | O | L | Fűszeres | GMB | GKN | PONTOSSÁG |
|---|---|---|---|---|---|---|---|
| 5-10x | 30.188 | - | 106.35 | 5-10x | GU2050 | HS179 | 330 |
| 5-101X | 23.82 | - | 61.3 | 5-101X | Gu400 | HS150 | 340 |
| 5-111x | 23.825 | - | 61.3 | 5-111x | - | HS194 | 341 |
| 5-113X | 27 | - | 81.78 | 5-113X | G5-113X | HS166 | 369 |
| 5-1204X | 27/28.6 | 67.6 | 92 | 5-1204X | - | - | 434 |
| 5-12062X | 48.05 | - | 161 | 5-12062X | - | HS268 | - |
| 5-12072X | 57.05 | - | 162.9 | 5-12072X | - | - | - |
| 5-12100X | 45 | - | 120.4 | 5-12100X | GU7530 | HS260 | - |
| 5-121X | 27 | - | 81.75 | 5-121X | G5-121X | - | - |
| 5-12219X | 48.05 | - | 125.8 | 5-12219X | Gu7620 | HS272 | - |
| 5-12276X | 44.1 | - | 149 | 5-12276X | - | - | - |
| 5-12278X | 50 | - | 164 | 5-12278X | - | - | - |
| 5-12924X | 52 | - | 133 | 5-12924X | GU7560 | HS282 | - |
| 5-12932X | 57.07 | - | 152 | 5-12932X | GU7630 | HS289 | - |
| 5-1312X | 28.6/28.58 | 91 | 60 | 5-1312X | - | 375 | |
| 5-13400X | 23.825 | - | 61.3 | 5-111x | - | 341 | |
| 5-134X | 27 | - | 92/81.7 | 5-134X | G5-134X | - | 353 |
| 5-1509X | 28.52 | - | 77.7 | 5-1509X | Gut14 | HS172 | 396 |
| 5-1516X | 25.02 | - | 76.44 | 5-1516X | Gum88 | HS153 | 399 |
| 5-153X | 27 | - | 81.78 | 5-153X | GU1000 | HS166 | 369 |
| 5-155X | 34.93 | - | 126.22 | 5-155X | G5-155X | HS275 | 358 |
| 5-160X | 30.188 | - | 106.35 | 5-160X | GU2050 | HS179 | 330 |
| 5-160x-1 | 30.188 | - | 106.35 | 5-160x-1 | - | - | - |
| 5-165X | 41.24 | - | 142 | 5-165X | G5-165X | HS252 | 359 |
| 5-178x | 30.188 | - | 92.075 | 5-178x | GU2200 | HS182 | 331 |
| 5-188X | 34.93 | - | 106.31 | 5-188X | GU2300 | HS263 | 351 |
| 5-200X | 27 | - | 81.78 | 5-200X | G5-200X | HS166 | 329 |
| 5-212X | 27.02/28.6 | 60.2 | 92 | 5-212X | G5-212X | - | 355 |
| 5-213X | 27 | - | 92 | 5-213X | G5-213X | - | 354 |
| 5-248X | 25.39/27 | 38.6 | 62 | 5-248X | - | - | 361 |
| 5-251X | 27 | - | 81.75 | 5-251X | G5-251X | HS166 | 369 |
| 5-263X | 34.93 | - | 106.31 | 5-263X | G5-263X | HS263 | 351 |
| 5-275x | 34.93 | - | 126.22 | 5-275x | G5-275X | HS275 | 358 |
| 5-3022X | 27/28.6 | 60.2 | 81.78 | 5-3022X | - | - | 372 |
| 5-3147X | 28.6 | 60.2 | - | 5-3147X | Gu6370 | HS451 | 534G |
| 5-353X | 27/27.4 | 50,8/56.8 | - | 5-353X | G5-353X | - | 319 |
| 5-431X | 33.3 | - | 67.48 | 5-431X | GGP-44R | - | 888 |
| 5-443X | 27.01 | - | 61.95 | 5-443X | G5-443X | HS197 | 437G |
| 5-450X | 27.01/27 | 52.5 | 81.78 | 5-450X | - | - | 455 |
| 5-4x | 27.009 | - | 74.6 | 5-4x | GU1100 | HS195 | 344 |
| 5-544X | 28.6/27 | 60 | 81.4 | 5-544X | - | - | 372 |
| 1941 december | 17 | - | 47 | - | - | - | - |
| AM-14R | 28.6 | - | 66.5 | 5-129x | GGPL-14R | - | 880 |
| AM-35R | 31.75 | - | 81.4 | 5-243X | GGP-35R | HS202 | 964 |
| AP0-10 | 22 | - | 54.8 | 40116 | Gua-4 | HS132 | 812 |
| AP0-35 | 32 | - | 76 | 312410 | Gua-14 | HS204 | 814 |
| AP1-00 | 22 | - | 54 | - | Gua-3 | HS130 | 811 |
| AP2106 | 23.8/27 | - | 74,62/91 | - | - | HS786 | - |
| AP3-11 | 26.98 | - | 70 | 40127 | Gua-7 | HS168 | 813 |
| AP3506 | 27/32.02 | - | 94/76 | - | HS787 | - | |
| AP4-21 | 26.98 | - | 74.6 | 44444 | Gua-8 | HS186 | 344G |
| C01 | 18 | - | 47 | - | Gua-1 | HS108 | - |
| C737 | 23.84 | - | 61.2 | - | - | - | - |
| C741 | 27.01 | - | 74.65 | - | - | - | - |
| C770 | 27.01 | - | 81.75 | - | - | - | - |
| C771 | 30.2 | - | 106.3 | - | - | - | - |
| CZ-170 | 27 | - | 80 | - | - | - | - |
| CZ-183 | 27 | - | 71.3 | - | - | - | - |
| CZ-280 | 65.03 | - | 189.7 | - | - | - | - |
| EG10 | 22.02 | - | 54.15 | K5-A588 | Gua-3 | HS130 | 811 |
| EG20 | 23.82 | - | 61.45 | K5-A64 | Gua-5 | HS185 | 341AG |
| Eg30 | 27.02 | - | 70.15 | K5-A590 | Gua-7 | HS168 | 813 |
| Eg40 | 27.02 | - | 74.8 | K5-LGB36R | Gua-8 | HS186 | 344AG |
| EG50 | 30.22 | - | 80.15 | K5-A591 | Gua-11 | HS198 | 815 |
| EG60 | 30.22 | - | 92.2 | K5-LGB182 | Gua-12 | HS182 | 331AG |
| EG60-1 | 30.2 | - | 92 | EG60-1 | - | - | |
| EG70 | 30.22 | - | 106.65 | K5-A536 | Gua-13 | HS179 | 330 |
| EG80 | 34.92 | - | 106.5 | K5-A538 | Gua-17 | HS183 | 351AG |
| GU1000 | 27 | - | 81.78 | 5-153X | GU1000 | HS166 | 369 |
| GU1100 | 27.009 | - | 74.6 | - | GU1100 | HS195 | 344 |
| GU-1210 | 27 | - | 62 | - | - | - | - |
| Gu200 | 24 | - | 63.31 | - | Gu200 | - | - |
| GU2000 | 30.188 | - | 106.35 | 5-160X | GU2000 | HS179 | 330 |
| GU2050 | 30.188 | - | 106.35 | 5-160X | GU2050 | HS179 | 330 |
| GU2200 | 30.188 | - | 92.075 | 5-178x | GU2200 | HS182 | 331 |
| GU2300 | 34.93 | - | 106.31 | 5-188X | GU2300 | HS263 | 351 |
| Gu300 | 19.05 | - | 52 | Gu300 | HS119 | - | |
| Gu350 | 19.05 | - | 51.95 | Gu350 | - | - | |
| GU3500 | 39.675 | - | 115.42 | GU3500 | HS176 | 370 | |
| Gu400 | 23.82 | - | 61.3 | Gu400 | HS150 | 340 | |
| Gu500 | 23.82 | - | 61.6 | K5-LGB80R | Gu500 | HS194 | 341 |
| GU500-1 | 23.82 | - | 61.3 | - | GU500-1 | - | - |
| Gu5100 | 23.82 | - | 61.3 | - | Gu5100 | - | - |
| Gu7420 | 30 | - | 82.4 | - | Gu7420 | - | - |
| GU9730 | 48 | - | 116 | - | GU9730 | K5-A623 | - |
| Gua-10 | 30 | - | 82.1 | - | - | - | - |
| Gua-14 | 32 | - | 75.9 | - | Gua-14 | HS204 | 814 |
| Gua-20 | 36 | - | 89 | - | Gua-20 | HS230 | 817 |
| Guk-12 | 27 | - | 80 | - | - | - | - |
| KC2832ADW | 40 | - | 115.6 | - | - | - | - |
| KC2932ADW | 44 | - | 129 | - | GUM71 | HS312 | - |
| Spl90-1x | 41.28 | - | 126 | Spl90-1x | - | - | - |
| Spl140-1x | 49.22 | - | 139 | Spl140-1x | - | - | - |
| SPL170-1X | 55.02 | - | 164 | SPL170-1X | - | - | - |
| SPL250-1X | 60 | - | 163 | SPL250-1X | - | - | - |
| ST1538 | 15 | - | 38.1 | - | - | - | - |
| ST1539 | 15 | - | 39.1 | - | - | - | - |
| ST1540 | 15 | - | 40 | - | - | - | - |
| ST1638 | 16 | - | 38 | - | - | - | - |
| ST1639 | 16 | - | 39 | - | - | - | - |
| ST1640 | 16 | - | 40 | - | - | - | - |
| ST1940 | 19 | - | 40 | - | - | - | - |
| ST1948 | 19 | - | 48 | - | - | - | - |
| U431 | 27 | 77.22 | 92 | - | - | - | - |
| U447 | 42.12 | - | 104.5 | - | Gu4470 | - | 5871.5 |
| U728/4 | 24.09 | - | 74.55 | - | GU7280/4 | - | - |
| U743 | 35 | - | 96.8 | - | GU7430 | HS222 | - |
| U744 | 38.03 | - | 105.6 | - | GU7440 | HS236 | - |
| U753 | 45 | - | 120.4 | - | GU7530 | HS260 | - |
| U756 | 52 | - | 133 | - | GU7560 | HS282 | - |
| U761 | 53 | - | 135 | - | Gu7610 | HS284 | - |
| L225BF | 39.675 | - | 115.42 | - | GU3500 | HS176 | 370 |
| 5-100x | 25.4 | 38.5 | - | 5-100x | G5-100X | - | 514 |
| 5-103X | 23.83 | 35 | - | 5-103X | G5-103X | HS410 | 338 |
| 5-1200X | 27 | 57.4 | - | 5-1200X | G5-1200X | - | 429 |
| 5-1201X | 27/28.6 | 55.5 | - | 5-1201X | G5-1201X | - | 430 |
| 5-1203X | 27 | 67.6 | - | 5-1203X | G5-1203X | - | 433 |
| 5-1204X | 27/28.6 | 67.6 | 92 | 5-1204X | - | 434 | |
| 5-1206X | 30.188 | 76.28 | - | 5-1206X | G5-1206X | - | 427 |
| 5-12213X | 38 | 57.2 | - | 5-12213X | GU7300 | - | - |
| 5-1301X | 31.3 | 71.5 | - | 5-1301X | G5-1301X | - | 304 |
| 5-1306X | 27.4 | 50.9 | - | 5-1306X | G5-1306X | HS442 | 315 g |
| 5-1306x-1 | 27.4 | 50.8 | - | 5-1306x-1 | G5-1306x-1 | HS442 | 317 |
| 5-1309X | 28.6 | 63.96 | - | 5-1309X | G5-1309X | - | 316 |
| 5-1312X | 28.6/28.58 | 91 | 60 | 5-1312X | - | - | 375 |
| 5-1501X | 25.02 | 40 | - | 5-1501X | Gun27 | HS420 | 391 |
| 5-1502X | 26 | 42 | - | 5-1502X | Gut13 | HS432 | 394 |
| 5-1503X | 25.02 | 39.8 | - | 5-1503X | - | - | - |
| 5-1505X | 28.02 | 52.9 | - | 5-1505X | Gun29 | HS448 | 393 |
| 5-1506X | 38 | 57.2 | - | 5-1506X | GU7300 | HS480 | 463 |
| 5-1508X | 26 | 53.6 | - | 5-1508X | Gut12 | HS436 | 390 |
| 5-1510X | 29 | 49 | - | 5-1510X | Gut17 | HS454 | 387 |
| 5-1511x | 32 | 61 | - | 5-1511x | Gut20 | HS470 | 389 |
| 5-1514X | 22.52 | 34 | - | 5-1514X | - | - | 385 |
| 5-170x | 23.83 | 34.85 | - | 5-170x | G5-170X | HS410 | 338 |
| 5-212X | 27.02/28.6 | 60.2 | 92 | 5-212X | G5-212X | - | 355 |
| 5-248X | 25.39/27 | 38.6 | 62 | 5-248X | - | - | 361 |
| 5-2532X | 28.6 | 49 | - | 5-2532X | - | - | 513 |
| 5-260X | 27 | 52.5 | - | 5-260X | G5-260X | HS162 | 365 |
| 5-273X | 27 | 67.6 | - | 5-273X | G5-273X | - | 433 |
| 5-297X | 30.2 | 52.5 | - | 5-297X | G5-297X | HS457 | 371 |
| 5-297x-1 | 30.2 | 52.5 | - | 5-297x-1 | G5-297X-1 | HS457 | 377 |
| 5-3011X | 28.6 | 59.9 | - | 5-3011X | - | HS453 | 492 |
| 5-3022X | 27/28.6 | 60.2 | 81.78 | 5-3022X | - | - | 372 |
| 5-3147X | 28.6 | 60.2 | - | 5-3147X | Gu6370 | HS451 | 534G |
| 5-350X | 27 | 56.8 | - | 5-350X | - | - | 366 |
| 5-353X | 27/27.4 | 50,8/56.8 | - | 5-353X | G5-353X | - | 319 |
| 5-450X | 27.01/27 | 52.5 | 81.78 | 5-450X | - | - | 455 |
| 5-544X | 28.6/27 | 60 | 81.4 | 5-544X | - | - | - |
| 5-74x | 27 | 52.4 | - | 5-74x | G5-260X | HS441 | 356 |
| 5-92X | 24.61 | 34.36 | - | 5-92X | GGPL-6R | HS416 | 861 |
| AM-12R | 27.04 | 41.8 | - | 5-242X | GGL-12R | HS440 | 995 |
| CZ-276 | 68 | 89 | - | - | - | - | - |
| Daewoodamas | 25.02 | 41 | - | - | - | - | - |
| F3 | 20 | 37 | - | - | - | - | - |
| GU2500 | 31.25 | 46 | - | 5-1300X | GU2500 | - | - |
| K1507 | 28 | 55.6 | - | - | - | - | - |
| K1513 | 26.52 | 48 | - | - | - | - | - |
| Mussororear | 26.52 | 48 | - | - | - | - | - |
| RUJ1776SL | 26 | 41.76 | - | 5-1502X | Gut13 | HS432 | 394 |
| RUJ1780 | 20.02 | 34.7 | - | 5-1500X | Fegyver28 | HS124 | 392 |
| RUJ1781SL | 25.02 | 40 | - | 5-1501X | Gun27 | HS420 | 391 |
| RUJ1786 | 25.4 | 38.5 | - | 5-105X | G5-105X | 514G | |
| RuJ2016 | 26.03 | 53.64 | - | 5-1508X | Gut12 | HS436 | 390 |
| RuJ2028 | 28.02 | 52.9 | - | 5-1505X | Gun29 | HS448 | 393 |
| RUJ2030 | 25.4 | 55 | - | 5-2011X | GU6200 | HS430 | 507 |
| RuJ2038 | 27.4 | 50.92 | - | - | - | - | - |
| RuJ2041 | 32 | 61 | - | 5-1511x | Gut20 | HS470 | 389 |
| RUJ2100 | 29 | 49 | - | 5-1510X | Gut17 | HS454 | 387 |
| RUJ3007 | 32 | 68.2 | - | - | - | - | - |
| SES-01K | 34.92 | 72.2 | - | - | - | - | - |
| U431 | 27 | 77.22 | 92 | - | - | - | - |
| U730 | 38 | 57.2 | - | 5-1506X | GU7300 | HS480 | - |
| U747 | 42 | 66 | - | - | GU7470 | - | - |
| UN35073NB | 34.92 | 73.01 | - | - | - | - | - |
| 1006 | 27 | 56.8 | - | - | - | - | - |
| 1022 | 22.52 | 34 | - | - | - | - | - |
| 1052 | 25 | 39.6 | - | - | - | - | - |
| 1077 | 28.6 | 49 | - | - | - | - | - |
| 1200731 | 38.06 | 57 | - | - | - | - | - |
| 14RX | 28.6 | 44.5 | - | - | - | - | - |
| 2-0527 | 27.41/28.61 | 50,6/61.6 | - | - | - | - | - |
